Cable Blowing
Overview :
As the agent for CBS Products, we have a wide range of Fibre Blowing Machines available.
CBS Airstream – for blowing cable sizes 2.5mm – 11mm into tube sizes 5mm – 18mm
CBS Hurricane – for blowing cable sizes 2.5mm – 16mm
CBS Accelair – for blowing cable sizes up to 1.6mm with buckle protection (up to 3mm without buckle protection
CBS Tornado – for blowing cable sizes 2.5mm – 11mm
CBS Jetstream – for blowing cable sizes 4mm – 20 mm into duct range 12mm -50mm
OUR products
Accelair
The Accelair 3 is a compact integrated fibre blowing machine benefiting from full automation and fibre management; sophisticated fibre protection is implemented to ensure the fibre mechanical and optical integrity is maintained. The machine only requires a single 24V D.C. electrical supply and compressed air to operate.

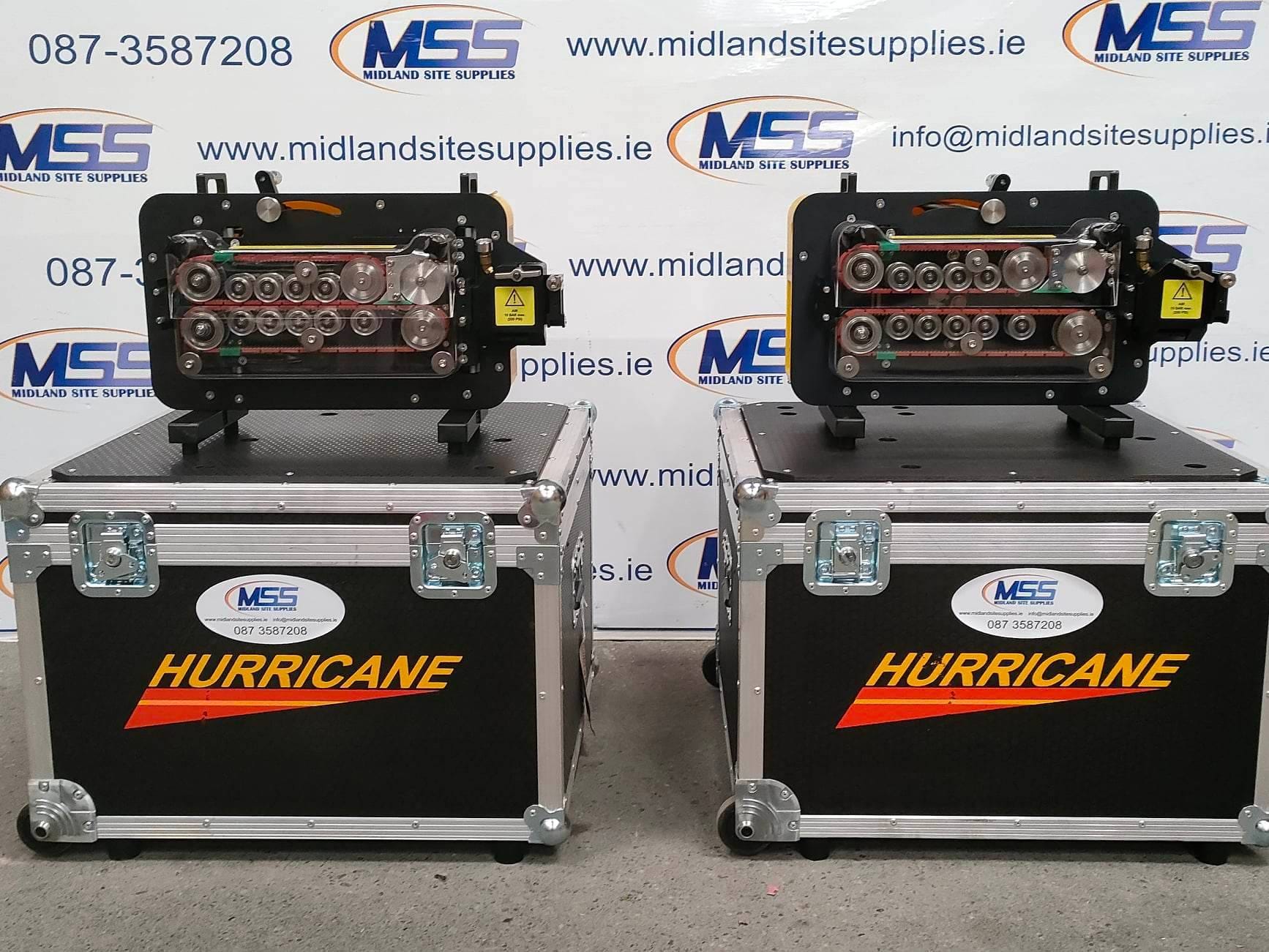

CBS HURRICANE
The C-1750 Hurricane has been designed to maximise protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single person operation with safe, easy to operate ergonomic controls combines with low maintenance and high reliability to form the machine’s key features. The Hurricane is adjustable to suit a wide range of cable diameters 2.5-16mm.

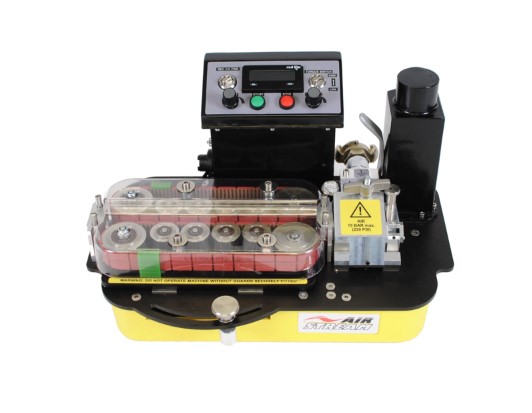

CBS AIRSTREAM
The C-1700 Airstream cable blowing machine has been designed to maximise protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Designed to install cable sizes of 2.5 - 11mm into tube sizes of 5 - 18mm.

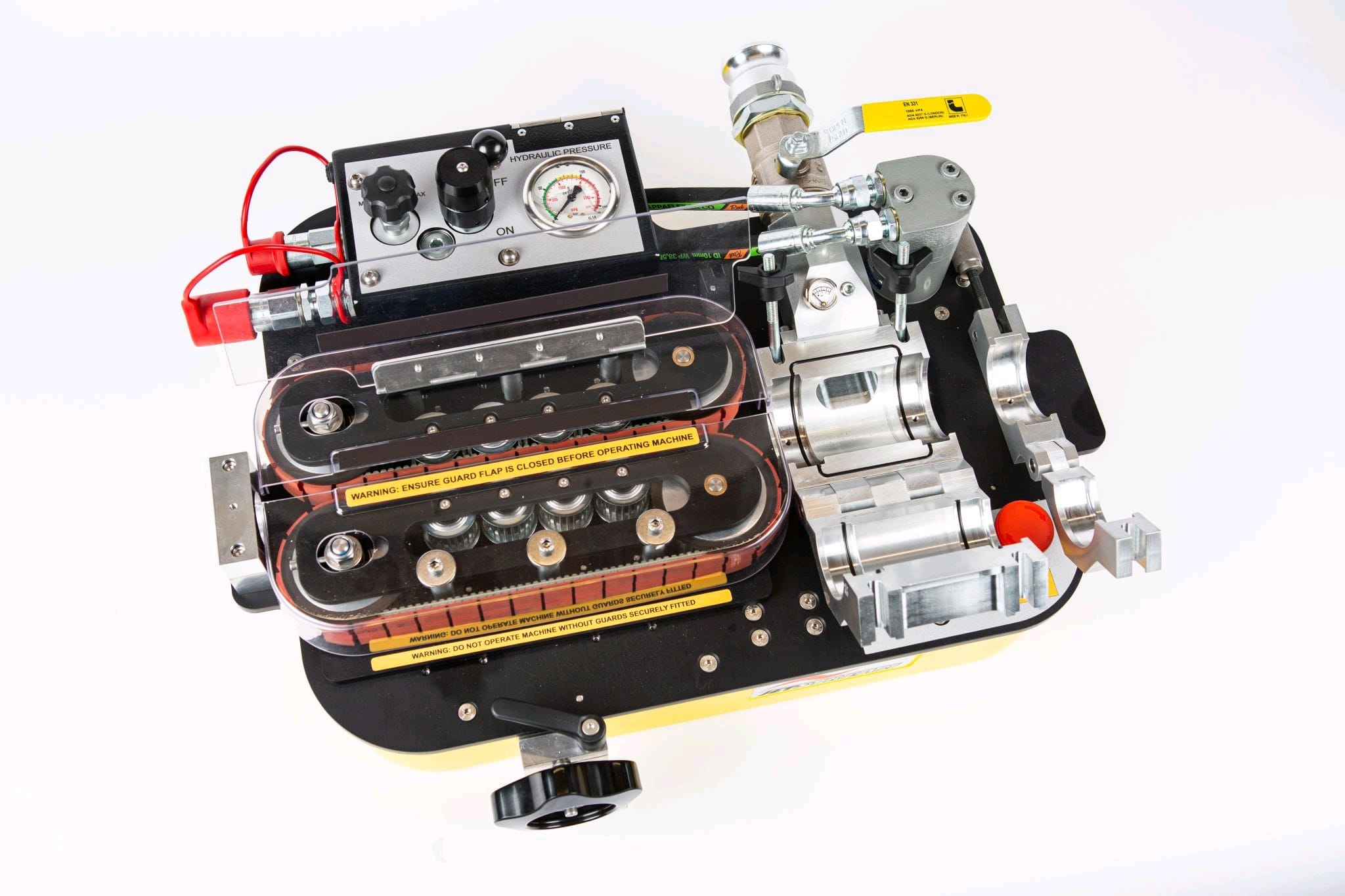

CBS JETSTREAM
The C-1900 has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32cc hydraulic motor, powered by the proven C-1203-F power pack. The electronic monitoring system provides read-out of speed and distance, gives protection against duct obstructions and includes emergency stop facility. The C-1900 is adjustable to suit a wide range of cable diameters 4-20mm, and duct diameters 12-50mm o/d.
CBS TORNADO
The cable blowing machine (sometimes known as cable jetting), comprising an air box and cable pusher, has been designed to provide an effective and safe method of fibre optic cable installation. The system installs fibre optic cable of 6mm (0.25”) to 32mm (1.25”) overall diameter, at speeds up to 90m/min (300ft/min), into pre-installed ducts. The system operates on the viscous drag principle employing compressed air to install the cable, controlled and assisted by the belt drive system. The cable is propelled by compressed air, fed into the duct via a venturi principle, while the hydraulically powered belt drive system controls the fibre optic cable. The electronic monitoring system provides read out of speed and distance, gives protection against duct obstructions and includes an emergency stop facility. The system is mounted on an anti-corrosion treated, sturdy, height adjustable, wheeled, tubular steel trolley. This allows the unit to be wheeled around on site. The C-1203 hydraulic petrol driven power pack provides power. The unit is CE approved.
